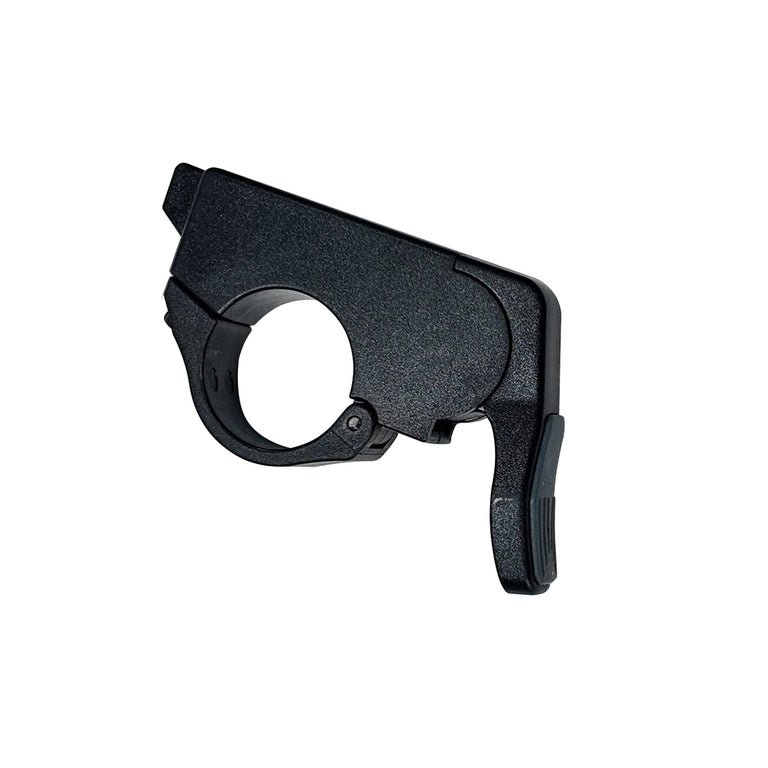

The 300X thumb throttle gives riders instant, direct power on demand — a simple thumb press delivers smooth acceleration independent of pedal assist, ideal for quick starts or extra boost when you need it most.
-
Design: Compact lever operated by the thumb for smooth speed control.
-
Compatibility: Universal fit for standard 22.2 mm (7/8-inch) handlebars on e-bikes and electric scooters.
-
Connection: Equipped with a waterproof quick-disconnect plug.
Electrical & Signal Specs
-
Operating Input Voltage: 5V DC (supplied from the motor controller).
-
Output Signal Voltage: 0.8V to 4.2V linear analog voltage.
-
System Voltage Compatibility: 48V
-
Internal Sensor: Linear Hall Effect component.
Physical & Mechanical Specs
-
Handlebar Sizing: Fits standard 22mm to 22.5mm (7/8 inch) diameter bars.
-
Installation Design: Split-clamp design featuring a tensioning bolt. This lets you mount or remove it without removing your handlebar grips.
-
Orientation Options: Universal construction. It can be installed as a right-hand thumb lever or flipped over for left-hand use.
-
Chassis Construction Material: High-impact PC/ABS blend matte composite.
-
Base Net Weight: Approximately 43 grams.

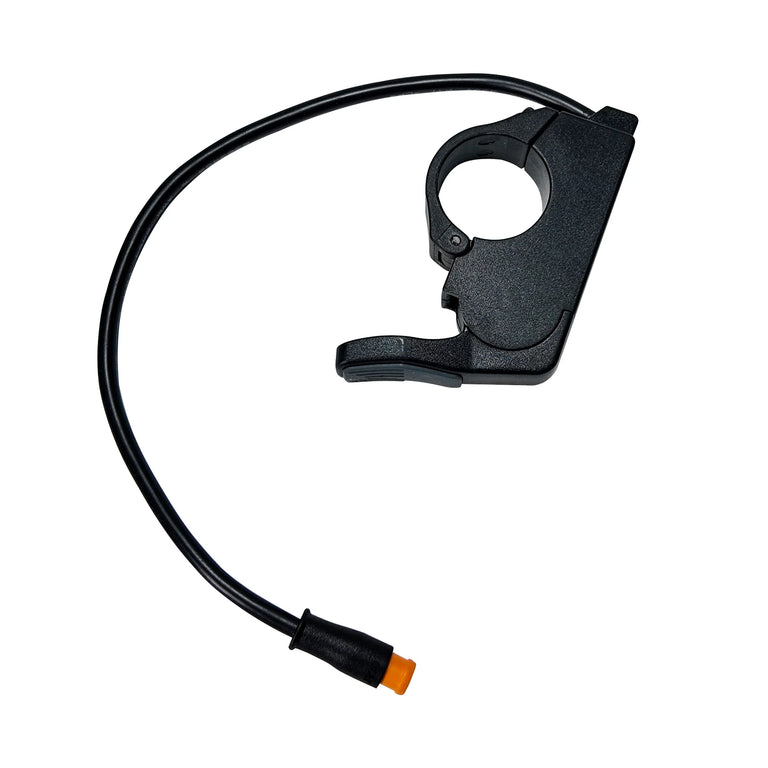

Cabling & Plug Specs
-
Cable Connection Type: 3-Pin waterproof connector.
-
Cable Length:
-
Environmental Weather Rating: IP65 waterproof standard.
